Passbook Update Printers. Made in Hanamaki , Japan

japanese

Reducing cost, space, and time

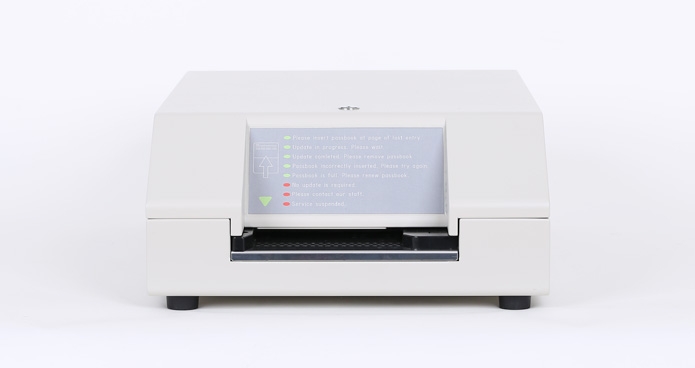

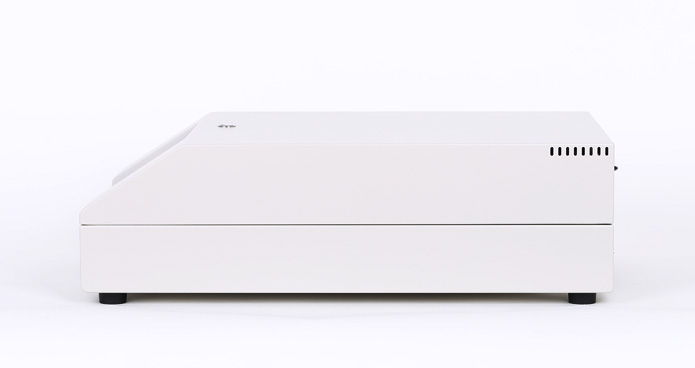

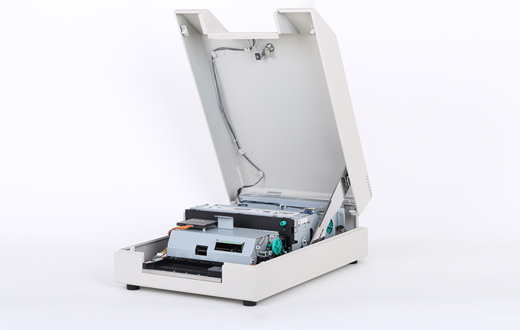

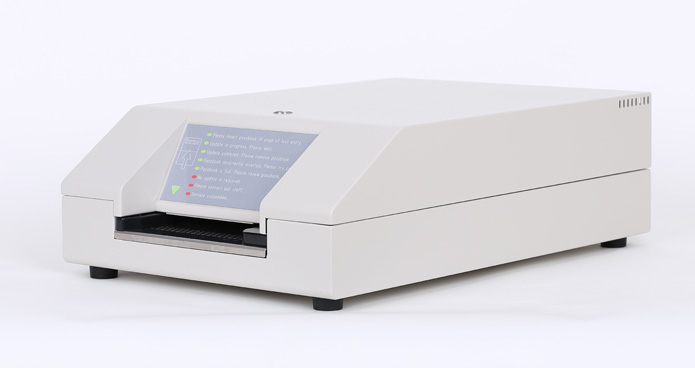

Lobby printer S4880

Passbook printer with Automatic page turning function

Specification

Lobby printer S4880

Print Method 24 pins wire dot matrix
Printing Speed Draft Mode: 251CPS(10CPI), 301CPS(12CPI)
Regular Mode: 200CPS(10CPI), 240CPS(12CPI)
Number of Character/Line
(Passbook's width:140mm)		 53 at 10CPI, 64 at 12CPI
Printing Pitch 1/10,1/12 to 1/16,1/18 and 1/20 inches (Selectable with Command)
Line Feed Pitch 1/5, 1/6 and N/120 inches (Selectable with Command)
Physical Dimensions 360mm(W)×550mm(D)×170mm(H)
Weight Less than 20kg at full-options
Passbook Insertion
-Type
-Passbook size
-Total Pages
-Total Thickness
Horizontal-seamed type only
Width : 122 - 165mm Length : 160 - 180mm
Maximum 15 pages
Less than 2.2mm
Interface Condition RS232C × 1

Features:

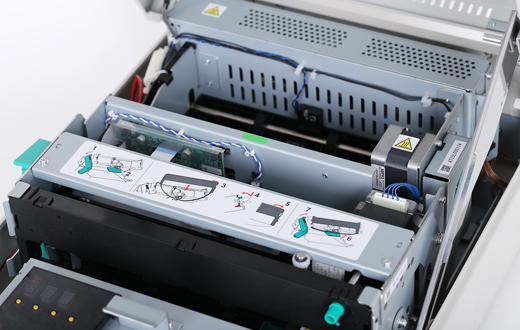

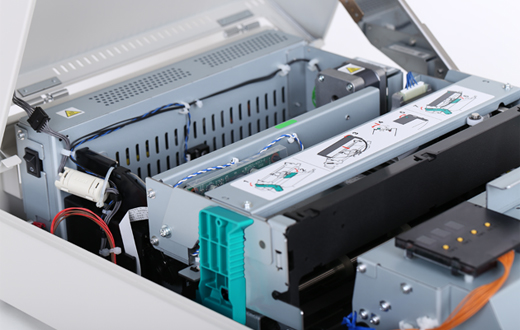

  • -Automatic page turning function
    S4880 can turn pages of horizontal stitch passbooks forward and/or backward.

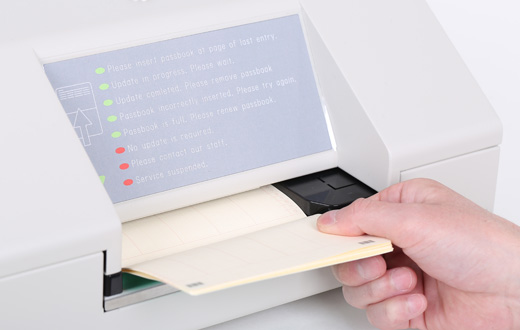

    -Guidance panel
    Equipped operation guide function in order to avoid operation mistake by users
    -Other equipped function
    Automatic skew correction, MS/page barcode reader, Last line finding

Automatic passbook insertion~Smooth passbook updating

Automatic page turning

Voice guidance function
(Optional function. Please contact us for further information.)

Contact US

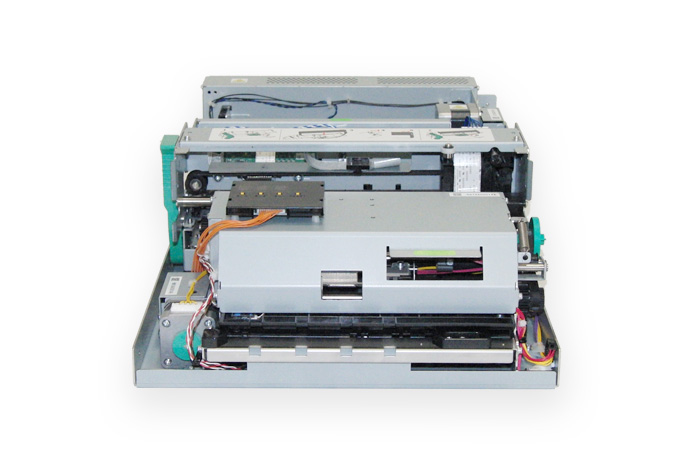

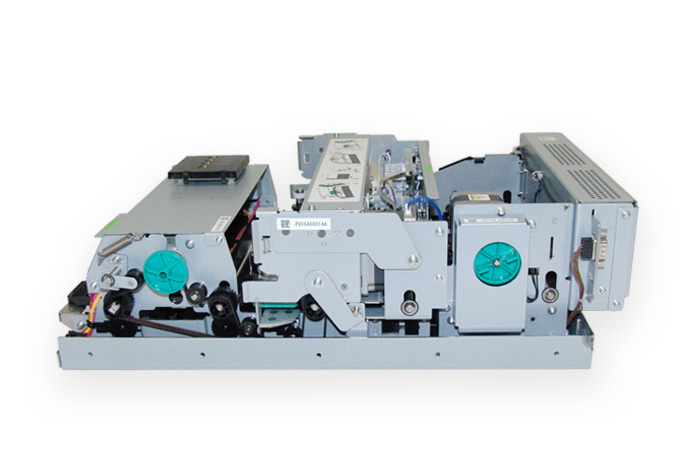

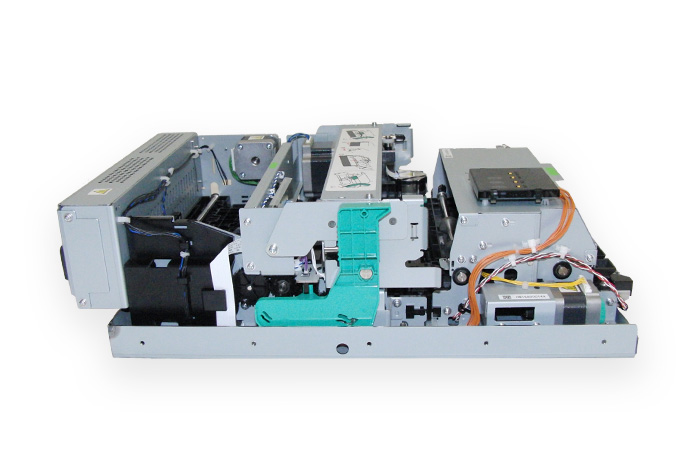

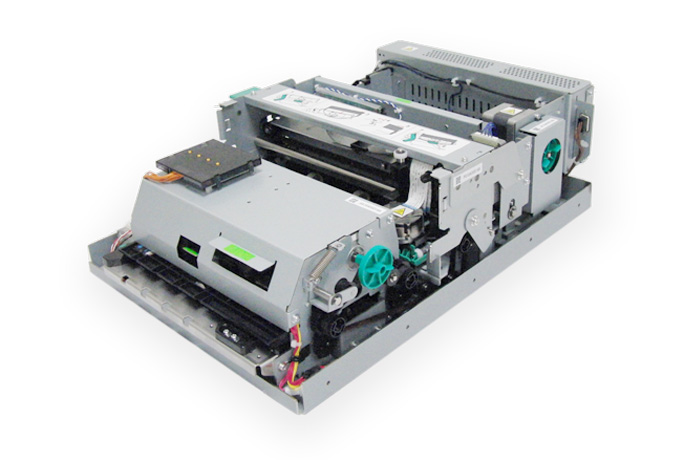

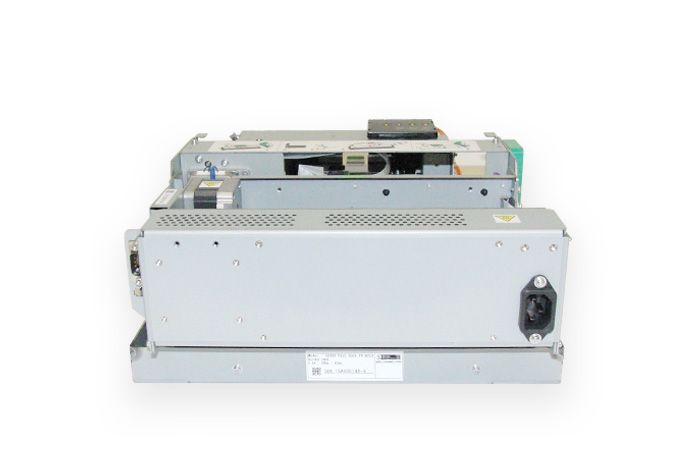

S4880 built-in type

Built-in type S4880 is used as a module and installed into ATMs in financial institutions.
Compared to the stand-alone type with cover, it’s smaller in size and flexible so that it can be installed in various types of ATM.

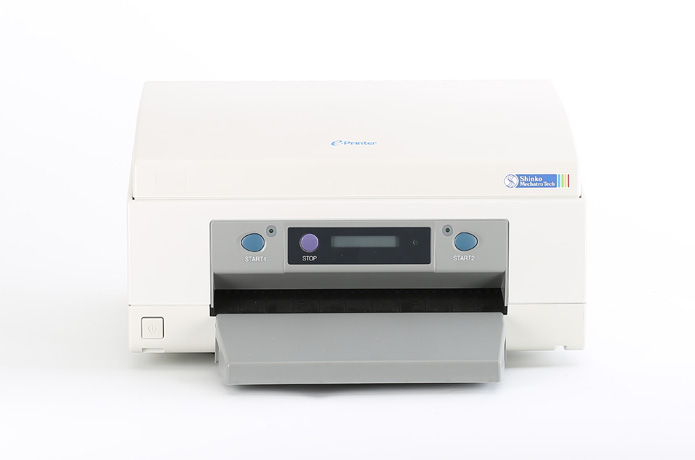

Teller printer S4672

-Compact design
With this function, a skewed paper is correctly aligned during the media insertion process to make it possible to print on the correct position. The business transactions will be more efficient and smooth with this function to reduce error in printing.
